import os
from jax import config
config.update("jax_enable_x64", True)
import jax.numpy as jnp
import numpy as np
import matplotlib.pyplot as plt
from petitRADTRANS.math import resolving_space
from petitRADTRANS.planet import Planet
from petitRADTRANS.spectral_model import SpectralModel
from petitRADTRANS.retrieval.retrieval import Retrieval
from petitRADTRANS.retrieval.preparing import polyfit
from petitRADTRANS.plotlib import plot_result_corner
import petitRADTRANS.physical_constants as cst
High-resolution retrieval workflow with SpectralModel#
Written by Doriann Blain, based on the setup used in Blain et al. (2024).
The goal of this notebook is to go through a typical high-resolution retrieval workflow with SpectralModel. More details on the SpectralModel object are available in the SpectralModel notebook.
We make some useful imports below.
Optional: loading a Planet#
It can be convenient to use the Planet object to get the parameters we need. Note that this is not required.
[2]:
planet = Planet.get("HD 189733 b")
Loading data#
The first step of any retrieval is to load the data to be retrieved. In a real case, this would be done with something in the line of:
# Load the wavelengths, spectra, and uncertainties (errors)
data_wavelengths, data, data_uncertainties = load('my_data_file')
With the load function replaced with the steps necessary to load the data, that can be contained in one (or several) 'my_data_file' file(s). The shape of data and data_uncertainties must be (n_orders, n_exposures, n_wavelengths). The shape of data_wavelengths must be (n_orders, n_wavelengths).
Additional information, like airmass and orbital phases, are also useful for the analysis. If not available, these parameters can be obtained using the Planet object built-in functions. Some functions of interest are:
Planet.calculate_airmass: calculate the airmass of an observation site from the exposures’ timestamps,Planet.calculate_barycentric_velocities: calculate the barycentric velocity of an observation site from the exposures’ timestamps,Planet.calculate_mid_transit_time: calculate the primary mid transit time from the day of observation,Planet.calculate_orbital_phases: calculate the orbital phases from the mid primary transit time and the exposures’ timestamps,Planet.calculate_radial_velocity_semi_amplitude: calculate the planet’s \(K_p\) from the planet’s orbital parameters.
If you are only interested in real data analysis, you can directly skip to this section.
In the next section, we will generate simulated observations. This step is not necessary to analyse real data.
Optional: generating simulated observations#
Here we do not have real data, so we will generate simulated data.
To build simulated data, we can add telluric transmittances, stellar lines, instrumental deformations, and noise. To do this, we can make use of the following arguments:
telluric_transmittances: telluric transmittances to combine with the spectrum. Those can make use of theairmassmodel parameter to automatically build time- and wavelength-varying transmittances. A good place to download telluric transmittances is the SKYCALC website. petitRADTRANS also has a module to directly download SKYCALC data, calculate the airmass, and even find the best day for your observations in the modulepetitRADTRANS.cli.eso_skycalc_cli.telluric_transmittances_wavelengths: wavelengths of the provided telluric transmittances.instrumental_deformations: time and wavelength matrix of the instrumental deformations. Must be of shape(n_orders, n_exposures, n_wavelengths).noise_matrix: time and wavelength matrix of noise. Must be of shape(n_orders, n_exposures, n_wavelengths).
We will generate mock data wavelengths and times below. We will assume that we observed 19 exposures. We will get the star radial velocities, the barycentric velocities, and the airmass from our Planet object. We will let SpectralModel calculate the \(K_p\) for us, and we will fix rest_frame_velocity_shift to -5 km.s-1.
[3]:
n_exposures = 19
data_wavelengths = resolving_space(1.519, 1.522, 2e5) * 1e-4 # (cm) generate wavelengths at a constant resolving power
data_uncertainties = (
1 / 15000 * np.ones((1, n_exposures, data_wavelengths.size))
) # uncertainties assuming a S/N of 15000
times = 0.85 * planet.transit_duration * (np.linspace(0, 1, n_exposures) - 0.5) # covering 85% of the transit duration
mid_transit_time = 2458004.424877 # (JD)
dates = mid_transit_time + times / cst.s_cst.day
orbital_phases = times / planet.orbital_period
# Get V_* and V_bary from Planet
star_radial_velocity = planet.star_radial_velocity # (cm.s-1) V_sys
barycentric_velocities = planet.calculate_barycentric_velocities(time=dates, site_name="CAHA", time_format="jd")
# High resolution telluric transmittances (typically downloaded from SKYCALC)
telluric_transmittances_wavelengths = resolving_space(1.515, 1.525, 1e6) * 1e-4
telluric_transmittances = np.ones(telluric_transmittances_wavelengths.size)
telluric_transmittances[2850:2870] = 0.85
telluric_transmittances[2900:2930] = 0.7
telluric_transmittances[3400:3500] = 0.1
telluric_transmittances[3900:3950] = 0.5
telluric_transmittances[4400:4475] = 0.3
# Uncertainties are usually smaller within the telluric and stellar lines
telluric_transmittances_interp = np.interp(
data_wavelengths, telluric_transmittances_wavelengths, telluric_transmittances
)
data_uncertainties *= telluric_transmittances_interp
# Calculate the airmass using the Planet function
airmass = planet.calculate_airmass(time=dates, site_name="CAHA", time_format="jd")
# Random wavelength-constant instrumental deformations (typically unknown on real data), we use a seed for reproducibility # noqa: E501
instrumental_deformations = (0.4 - 0.2) * np.random.default_rng(seed=12345).random(n_exposures) + 0.2
instrumental_deformations = np.repeat(instrumental_deformations[:, np.newaxis], data_wavelengths.size, axis=-1)
# Noise with the data uncertainties, we use a seed for reproducibility
noise_matrix = np.random.default_rng(seed=54321).normal(loc=0, scale=data_uncertainties)
Now let’s initialize our simulated data. We will add an opaque cloud layer at 100 mbar. Our instrument will have a resolving power of \(R = 80\,000\).
Model parameter wavelength_boundaries: if you provide parameters such as the wavelengths of your data (rebinning_wavelengths), you no longer need to manually set wavelength_boundaries: SpectralModel will automatically calculate the optimal wavelengths boundaries for your data, taking into account the effect of time-varying Doppler-shift.
We will use planet to get some of the required parameters.
[ ]:
data_model = SpectralModel(
# Radtrans parameters
pressures=jnp.logspace(-6, 2, 100),
line_species=(
"CO-NatAbund",
"H2O",
),
rayleigh_species=("H2", "He"),
gas_continuum_contributors=("H2--H2", "H2--He"),
line_opacity_mode="lbl",
line_by_line_opacity_sampling=4,
# Model parameters
# Planet parameters
planet_radius=planet.radius,
reference_gravity=planet.reference_gravity,
reference_pressure=1e-2,
star_radius=planet.star_radius,
transit_duration=planet.transit_duration,
orbital_period=planet.orbital_period,
# Velocity parameters
star_mass=planet.star_mass,
orbit_semi_major_axis=planet.orbit_semi_major_axis,
orbital_inclination=planet.orbital_inclination,
rest_frame_velocity_shift=-5e5, # (cm.s-1) V_rest
system_observer_radial_velocities=star_radial_velocity - barycentric_velocities,
# Temperature profile parameters
temperature_profile_mode="isothermal",
temperature=planet.equilibrium_temperature,
# Cloud parameters
opaque_cloud_top_pressure=1e-2, # added opaque cloud
# Mass fractions
use_equilibrium_chemistry=False,
imposed_mass_fractions={
"CO-NatAbund": 1e-2,
"H2O": 1e-3,
},
filling_species={
"H2": 37,
"He": 12,
},
# Observation parameters
rebinned_wavelengths=data_wavelengths, # (cm) used for the rebinning, and also to set the wavelengths boundaries
rebin_range_margin_power=4, # used to set the wavelengths boundaries, adding a margin of ~1 Angstrom (1e-4 * ~1 µm)
convolve_resolving_power=8e4, # used for the convolution
# (s) the time of mid transit relative to the "times" parameter, **not** the real mid transit time in JD
mid_transit_time=0,
times=times,
# Preparation parameters
airmass=airmass,
tellurics_mask_threshold=0.8, # mask the fitted transmittances if it is below this value
polynomial_fit_degree=2, # degree of the polynomial fit
uncertainties=data_uncertainties,
)
Loading Radtrans opacities...
Loading line opacities of species 'CO-NatAbund' from file '/home/dblain/petitRADTRANS/input_data/opacities/lines/line_by_line/CO/C-O-NatAbund/C-O-NatAbund__HITEMP.R1e6_0.3-28mu.xsec.petitRADTRANS.h5'... Done.
Loading line opacities of species 'H2O' from file '/home/dblain/petitRADTRANS/input_data/opacities/lines/line_by_line/H2O/1H2-16O/1H2-16O__POKAZATEL.R1e6_0.3-28mu.xsec.petitRADTRANS.h5'... Done.
Successfully loaded all line opacities
Loading CIA opacities for H2--H2 from file '/home/dblain/petitRADTRANS/input_data/opacities/continuum/collision_induced_absorptions/H2--H2/H2--H2-NatAbund/H2--H2-NatAbund__BoRi.R831_0.6-250mu.ciatable.petitRADTRANS.h5'... Done.
Loading CIA opacities for H2--He from file '/home/dblain/petitRADTRANS/input_data/opacities/continuum/collision_induced_absorptions/H2--He/H2--He-NatAbund/H2--He-NatAbund__BoRi.DeltaWavenumber2_0.5-500mu.ciatable.petitRADTRANS.h5'... Done.
Successfully loaded all CIA opacities
Successfully loaded all opacities
Now we can generate the simulated data. We will use noiseless simulated data to check the accuracy of our retrieval setup.
[5]:
# Get simulated noiseless data (instead you would load the data here)
data_wavelengths, data = data_model.calculate_spectrum(
mode="transmission", # can also be 'emission' to generate an emission spectrum, in that case, other model_parameters need to be provided # noqa: E501
update_parameters=True, # the parameters that we set will be properly initialised
telluric_transmittances_wavelengths=telluric_transmittances_wavelengths,
telluric_transmittances=telluric_transmittances,
instrumental_deformations=instrumental_deformations,
noise_matrix=None, # no noise so we can see the lines
scale=True,
shift=True,
use_transit_light_loss=True,
convolve=True,
rebin=True,
prepare=False, # if the data were loaded, a preparation could not be done rigth away
)
# The data and its uncertainties must be masked arrays
data = np.ma.masked_array(data)
data_uncertainties = np.ma.masked_array(data_uncertainties)
# You can mask for example invalid pixels, here we will mask nothing
data.mask = np.zeros(data.shape, dtype=bool)
data_uncertainties.mask = np.zeros(data_uncertainties.shape, dtype=bool)
Preparing the data#
A crucial step to analyze these data is to clean the effect of the telluric and stellar lines, and of the instrumental deformations. This is done using a “preparing pipeline” (also called “detrending” or “pre-processing” step).
The Polyfit preparing pipeline can be used, it is also the default SpectralModel.preparing_pipeline function. The well-known SysRem preparing pipeline is also implemented.
Using SysRem instead of Polyfit: an example to setup SpectralModel to use SysRem is provided in the `SpectralModel notebook <./spectral_model.ipynb>`__. Note that we do not recommend to use SysRem with this framework (see Blain et al. 2024, Appendix B).
[6]:
prepared_data, preparation_matrix, prepared_data_uncertainties = polyfit(
spectrum=data,
uncertainties=data_uncertainties,
wavelengths=data_wavelengths,
airmass=airmass,
tellurics_mask_threshold=0.8,
polynomial_fit_degree=2,
full=True,
apply_throughput_removal=True,
apply_telluric_lines_removal=True,
)

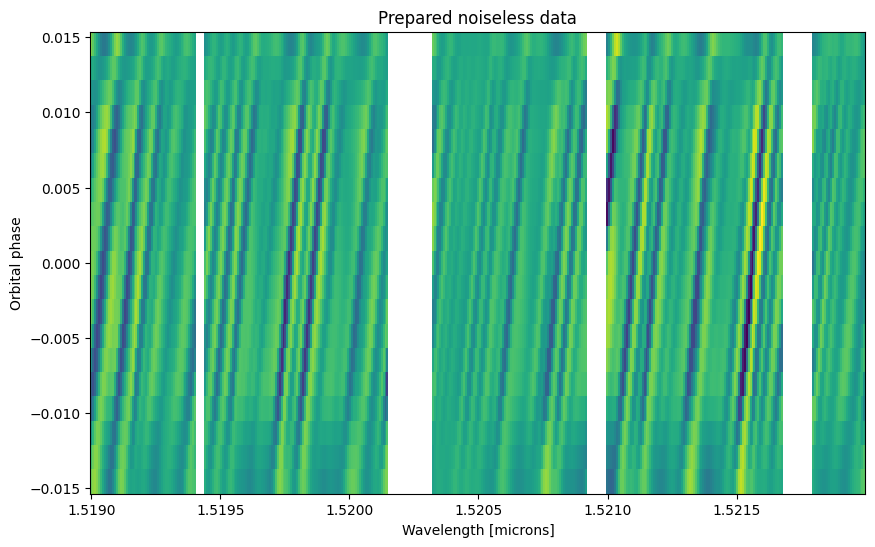

# Plot the prepared data
fig, ax = plt.subplots(figsize=(10, 6))
ax.pcolormesh(data_wavelengths[0] * 1e4, orbital_phases, prepared_data[0])
ax.set_xlabel("Wavelength [microns]")
ax.set_ylabel("Orbital phase")
ax.set_title("Prepared noiseless data")
[6]:
Text(0.5, 1.0, 'Prepared noiseless data')
Defining the retrieved parameters#
Let’s define the parameters we will retrieve. We will retrieve the temperature, the abundance of our line species, the pressure of the cloud, as well as \(K_p\), \(V_\textrm{rest}\), and \(T_0\). We will use uniform prior in all cases. This is typical for a retrieval, although it can be relevant to use more complex priors in some rare and specific case. In the SpectralModel workflow, we only need to sepcify which of our model_parameters we would like to retrieve, and how.
Note that any model parameter can be retrieved in this way. It could be interesting to retrieve, e.g., convolve_resolving_power or reference_gravity. For this example, we will limit the number of retrieved parameters. But in a real case, you just need to add the name and prior parameters in the retrieved_parameters dictionary.
[7]:
retrieved_parameters = {
"temperature": {
"prior_parameters": [100, 4000], # (K)
"prior_type": "uniform",
"figure_title": r"T",
"figure_label": r"T (K)",
},
"CO-NatAbund": {
"prior_parameters": [-12, 0], # (MMR)
"prior_type": "uniform",
"figure_title": r"[CO]",
"figure_label": r"$\log_{10}$(MMR) CO",
},
"H2O": {
"prior_parameters": [-12, 0], # (MMR)
"prior_type": "uniform",
"figure_title": r"[H$_2$O]",
"figure_label": r"$\log_{10}$(MMR) H$_2$O",
},
"log10_opaque_cloud_top_pressure": {
"prior_parameters": [-10, 2], # (bar)
"prior_type": "uniform",
"figure_title": r"[$P_c$]",
"figure_label": r"$\log_{10}(P_c)$ ([Pa])",
"figure_offset": 5, # [bar] to [Pa]
},
"radial_velocity_semi_amplitude": {
"prior_parameters": np.array([100e5, 200e5]), # (cm.s-1)
"prior_type": "uniform",
"figure_title": r"$K_p$",
"figure_label": r"$K_p$ (km$\cdot$s$^{-1}$)",
"figure_coefficient": 1e-5, # cm.s-1 to km.s-1
},
"rest_frame_velocity_shift": {
"prior_parameters": np.array([-10e5, 10e5]), # (cm.s-1)
"prior_type": "uniform",
"figure_title": r"$V_\mathrm{rest}$",
"figure_label": r"$V_\mathrm{rest}$ (km$\cdot$s$^{-1}$)",
"figure_coefficient": 1e-5, # cm.s-1 to km.s-1
},
"mid_transit_time": {
"prior_parameters": np.array([-150, 150]), # (s)
"prior_type": "uniform",
"figure_title": r"$T_0$",
"figure_label": r"$T_0$)",
},
}
The retrieved parameters dictionary follows these rules:
Each key must refer to the desired
model_parametersto retrieve.The value of each key must be a dictionary containing at least the following keys:
'prior_type': a string stating the prior type to use. SeepetitRADTRANS.retrieval.utilsto get a list of them.'prior_parameters': a list of values, one for each of the prior function parameters.
Log10 retrieval: if you want to retrieve the decimal logarithm of a parameter instead of the parameter itself, you can add log10_ in front of its model parameter name. For example, log10_opaque_cloud_top_pressure instead of opaque_cloud_top_pressure. SpectralModel will make the conversion automatically. The imposed mass fraction are automatically retrieved in log-space and the species names must not be altered.
The name to use for the retrieved parameters must be the same name as the corresponding model_parameters, with one exception: the imposed mass fractions species must be directly named and not put inside a imposed_mass_fractions dictionary.
Other keys can be added, but they are optional and used only for plotting:
'figure_title': text to display above each posterior in the corner plot'figure_label': text to display at the bottom of each posterior in the corner plot'figure_coefficient': coefficient by which to multiply the posterior’s value in the corner plot'figure_offset': value by which to offset the posterior’s value in the corner plot
The forward model: a SpectralModel with velocity range#
A high-resolution retrieval is a computationally expensive task. A way to optimize the retrieval time is to make use of SpectralModel’s optimal wavelength boundaries calculation.
However, because we will be exploring a range of velocities (through \(K_p\) and \(V_\textrm{rest}\)) in this retrieval, we cannot simply instantiate our SpectralModel by giving one value for radial_velocity_semi_amplitude, rest_frame_velocity_shift, and mid_transit_time. Fortunately, we can instantiate SpectralModel using the initializing function with_velocity_range to take care of that.
Because we used uniform priors, that are parameterized by their lower and upper boundaries, we can directly use retrieved_parameters. With other priors, such as gaussian, this would be more difficult.
[ ]:
forward_model = SpectralModel.with_velocity_range(
# Velocity parameters
radial_velocity_semi_amplitude_range=retrieved_parameters["radial_velocity_semi_amplitude"]["prior_parameters"],
rest_frame_velocity_shift_range=retrieved_parameters["rest_frame_velocity_shift"]["prior_parameters"],
mid_transit_times_range=retrieved_parameters["mid_transit_time"]["prior_parameters"],
# Radtrans parameters
pressures=jnp.logspace(-6, 2, 100),
line_species=(
"CO-NatAbund",
"H2O",
),
rayleigh_species=("H2", "He"),
gas_continuum_contributors=("H2--H2", "H2--He"),
line_opacity_mode="lbl",
line_by_line_opacity_sampling=4,
# SpectralModel parameters
# Planet parameters
planet_radius=planet.radius,
reference_gravity=planet.reference_gravity,
reference_pressure=1e-2,
star_radius=planet.star_radius,
transit_duration=planet.transit_duration,
orbital_period=planet.orbital_period,
# Velocity parameters
star_mass=planet.star_mass,
orbit_semi_major_axis=planet.orbit_semi_major_axis,
orbital_inclination=planet.orbital_inclination,
rest_frame_velocity_shift=0, # (cm.s-1) V_rest
system_observer_radial_velocities=star_radial_velocity - barycentric_velocities,
# Temperature profile parameters
temperature_profile_mode="isothermal",
temperature=planet.equilibrium_temperature,
# Cloud parameters
opaque_cloud_top_pressure=1e-2, # added opaque cloud
# Mass fractions
use_equilibrium_chemistry=False,
imposed_mass_fractions={
"CO-NatAbund": 1e-12,
"H2O": 1e-12,
},
filling_species={
"H2": 37,
"He": 12,
},
# Observation parameters
rebinned_wavelengths=data_wavelengths, # (cm)
# increase the margin of the optimal wavelengths boundaries by ~1 angstrom (1e-4 * 1 um)
rebin_range_margin_power=4,
convolve_resolving_power=8e4, # used for the convolution
mid_transit_time=0,
times=times,
# Preparation parameters
airmass=airmass,
tellurics_mask_threshold=0.8, # mask the fitted transmittances if it is below this value
polynomial_fit_degree=2, # degree of the polynomial fit
uncertainties=data_uncertainties,
)
Loading Radtrans opacities...
Loading line opacities of species 'CO-NatAbund' from file '/home/dblain/petitRADTRANS/input_data/opacities/lines/line_by_line/CO/C-O-NatAbund/C-O-NatAbund__HITEMP.R1e6_0.3-28mu.xsec.petitRADTRANS.h5'... Done.
Loading line opacities of species 'H2O' from file '/home/dblain/petitRADTRANS/input_data/opacities/lines/line_by_line/H2O/1H2-16O/1H2-16O__POKAZATEL.R1e6_0.3-28mu.xsec.petitRADTRANS.h5'... Done.
Successfully loaded all line opacities
Loading CIA opacities for H2--H2 from file '/home/dblain/petitRADTRANS/input_data/opacities/continuum/collision_induced_absorptions/H2--H2/H2--H2-NatAbund/H2--H2-NatAbund__BoRi.R831_0.6-250mu.ciatable.petitRADTRANS.h5'... Done.
Loading CIA opacities for H2--He from file '/home/dblain/petitRADTRANS/input_data/opacities/continuum/collision_induced_absorptions/H2--He/H2--He-NatAbund/H2--He-NatAbund__BoRi.DeltaWavenumber2_0.5-500mu.ciatable.petitRADTRANS.h5'... Done.
Successfully loaded all CIA opacities
Successfully loaded all opacities
Setting up the retrieval#
The SpectralModel workflow uses the same objects (Data, Retrieval) as the Radtrans retrieval workflow, but uses them a bit differently. A description of these objects is available in the “Basic Retrieval Tutorial”.
Instantiating a Data object from a SpectralModel object#
The Data object combines the data with an associated forward model, here, forward_model. During the retrieval, forward_model will be used to fit the data. The fixed parameters of the retrieval are the model parameters of forward_model that are not in retrieved_parameters.
The modifications performed on the data during the preparing step has an effect on the uncertainties, hence we use the uncertainties of the prepared data that were returned by polyfit.
[9]:
data = { # multiple data can be retrieved by adding multiple keys
"data_1": forward_model.init_data(
# Data parameters
data_spectrum=prepared_data,
data_wavelengths=data_wavelengths,
data_uncertainties=prepared_data_uncertainties,
data_name="data_1",
# Retrieved parameters
retrieved_parameters=retrieved_parameters,
# Forward model post-processing parameters
mode="transmission",
update_parameters=True,
scale=True,
shift=True,
use_transit_light_loss=True,
convolve=True,
rebin=True,
prepare=True,
)
}
Taking care of mask...
Instantiating a Retrieval object from a Data object#
Now let’s make a Retrieval object from data.
[10]:
retrieval_name = "spectral_model_example"
retrieval_directory = os.path.join(".", "results", retrieval_name)
retrieval = Retrieval.from_data(
data=data,
retrieved_parameters=retrieved_parameters,
retrieval_name=retrieval_name,
output_directory=retrieval_directory,
run_mode="retrieval",
)
Using provided Radtrans object for data 'data_1'...
Running the retrieval#
Let’s run the retrieval. We will use very few live points and data points for speed. In a real high-resolution case, 100 live points can be enough to obtain reasonably defined posteriors.
This example should run in a several minutes on multiple processes, but a typical retrieval on a cluster can take several hours, depending mostly on the number of live points, the number of retrieved parameters, and the number of CPUs used.
[11]:
%%time
retrieval.run(
n_live_points=30,
resume=False,
seed=12345, # ⚠️ seed should be removed or set to -1 in a real retrieval, it is added here for reproducibility
)
Starting retrieval spectral_model_example
Testing data 'data_1':
wavelengths:
OK (no NaN, infinite, or negative value detected)
spectrum:
OK (no NaN, infinite, or negative value detected)
uncertainties:
OK (no NaN, infinite, or negative value detected)
Testing model function for data 'data_1'...
No errors detected in the model functions!
Starting retrieval: spectral_model_example
*****************************************************
MultiNest v3.10
Copyright Farhan Feroz & Mike Hobson
Release Jul 2015
no. of live points = 30
dimensionality = 7
*****************************************************
Starting MultiNest
generating live points
live points generated, starting sampling
Acceptance Rate: 0.529801
Replacements: 80
Total Samples: 151
Nested Sampling ln(Z): -53.875128
Importance Nested Sampling ln(Z): -51.415266 +/- 0.970433
Acceptance Rate: 0.503876
Replacements: 130
Total Samples: 258
Nested Sampling ln(Z): -53.673496
Importance Nested Sampling ln(Z): -51.744706 +/- 0.696297
Acceptance Rate: 0.466321
Replacements: 180
Total Samples: 386
Nested Sampling ln(Z): -52.712686
Importance Nested Sampling ln(Z): -45.959650 +/- 0.744879
Acceptance Rate: 0.431520
Replacements: 230
Total Samples: 533
Nested Sampling ln(Z): -46.819866
Importance Nested Sampling ln(Z): -38.328196 +/- 0.822152
Acceptance Rate: 0.424886
Replacements: 280
Total Samples: 659
Nested Sampling ln(Z): -40.570592
Importance Nested Sampling ln(Z): -21.406412 +/- 0.999142
Acceptance Rate: 0.437666
Replacements: 330
Total Samples: 754
Nested Sampling ln(Z): -32.375815
Importance Nested Sampling ln(Z): -22.184999 +/- 0.644397
Acceptance Rate: 0.444965
Replacements: 380
Total Samples: 854
Nested Sampling ln(Z): -26.063250
Importance Nested Sampling ln(Z): -19.520006 +/- 0.506414
Acceptance Rate: 0.460385
Replacements: 430
Total Samples: 934
Nested Sampling ln(Z): -21.030970
Importance Nested Sampling ln(Z): -18.752819 +/- 0.269848
Acceptance Rate: 0.459330
Replacements: 480
Total Samples: 1045
Nested Sampling ln(Z): -18.116913
Importance Nested Sampling ln(Z): -18.549805 +/- 0.155869
Acceptance Rate: 0.464505
Replacements: 530
Total Samples: 1141
Nested Sampling ln(Z): -17.171054
Importance Nested Sampling ln(Z): -18.264984 +/- 0.080465
Acceptance Rate: 0.461988
Replacements: 553
Total Samples: 1197
Nested Sampling ln(Z): -16.961758
Importance Nested Sampling ln(Z): -18.211339 +/- 0.064858
analysing data from ./results/spectral_model_example/out_PMN/spectral_model_example_.txt
ln(ev)= -16.695539615321582 +/- 0.69241087123036349
Total Likelihood Evaluations: 1197
Sampling finished. Exiting MultiNest
marginal likelihood:
ln Z = -18.2 +- 0.1
parameters:
temperature 1275 +- 94
CO-NatAbund -6.2 +- 2.5
H2O -3.25 +- 0.67
log10_opaque_cloud_top_pressure-1.97 +- 0.65
radial_velocity_semi_amplitude15212837 +- 389227
rest_frame_velocity_shift-521833 +- 35120
mid_transit_time-25 +- 68
CPU times: user 11min 54s, sys: 39min 26s, total: 51min 20s
Wall time: 3min 34s
In real high-resolution retrievals, it is not rare for the log-evidence (ln(Z)) printed by MultiNest to be *********. This is because high-resolution data contains a lot of points (\(\approx 10^6\)), so the absolute value of the log-evidence can reach very large values. Here the printed log-evidence should be small because of the few number of data points, but most importantly because we used noiseless data.

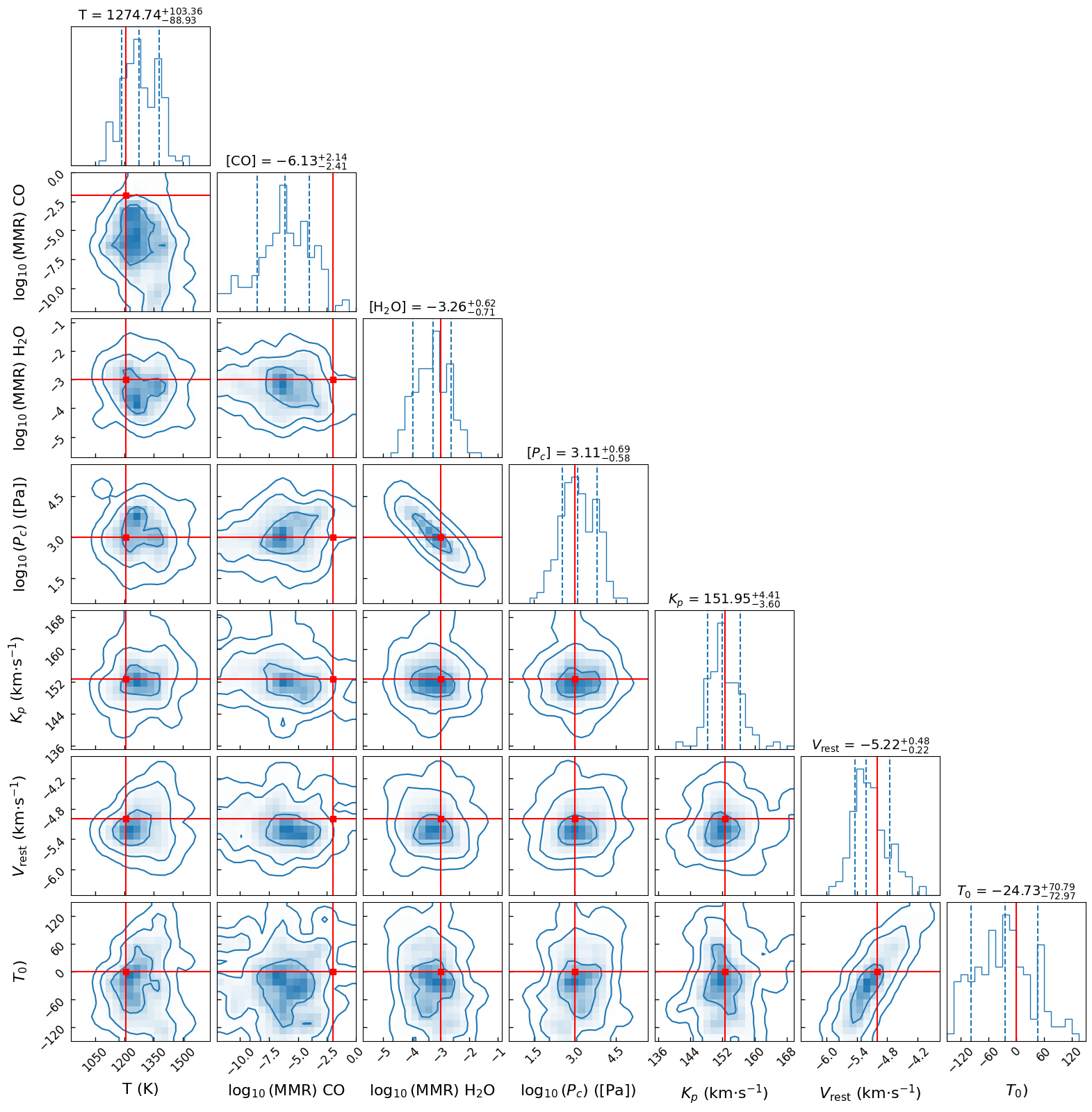

Plotting a corner plot#
Now we just have use a corner plot to visualize the results.
Since we used simulated data, we can check if we correctly retrieved the parameters by adding the true_values argument. In a retrieval on real data, the true parameters are unknown, so true_values can be left to None.
The posteriors will probably not be very well defined because of the few number of live points we used and insufficient S/N.
[ ]:
true_parameters = data_model.get_true_parameters(retrieved_parameters) # get our simulated data true parameters
plot_result_corner(
retrieval_directory=[retrieval_directory],
retrieved_parameters=retrieved_parameters,
figure_name="corner_plot",
label_kwargs={"fontsize": 16},
title_kwargs={"fontsize": 14},
figure_font_size=12,
true_values=true_parameters,
save=True,
figure_directory=retrieval_directory,
image_format="png",
)

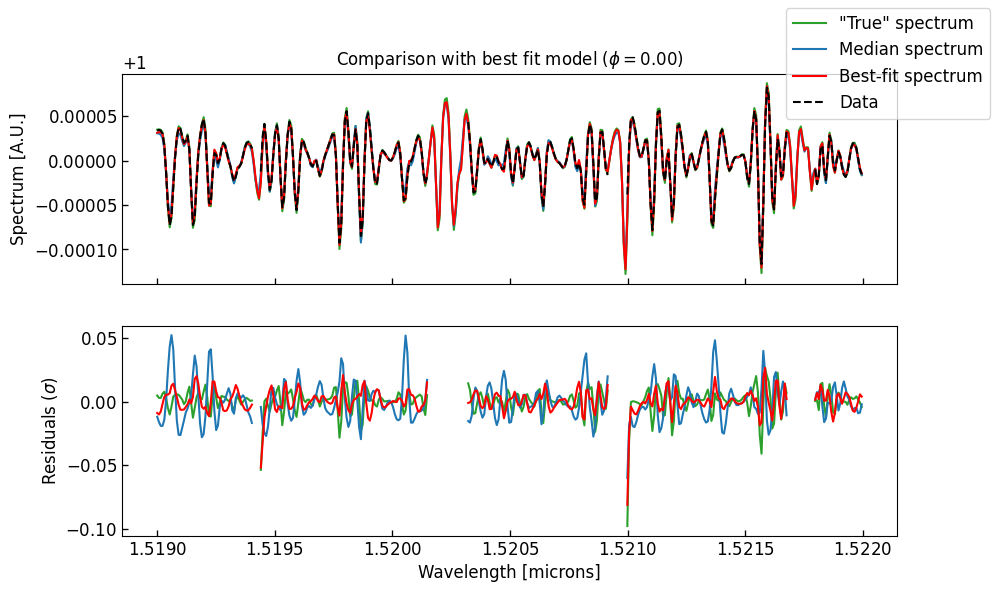

Best fit model and best fit parameters#
We can obtain the best fit model (i.e., the model with the maximum log-likelihood) very easily with the Retrieval.calculate_forward_model function:
[ ]:
# Get the forward model with best-fit parameters
wavelengths, best_fit_spectra, _ = retrieval.calculate_forward_model(parameters="best fit", data="data_1")
# Get the forward model with median parameters
_, median_spectra, _ = retrieval.calculate_forward_model(parameters="median", data="data_1")
# Get the forward model with the true parameters
_, true_spectra, _ = retrieval.calculate_forward_model(
parameters=true_parameters, # a dictionary can also be used, with parameter (fixed and/or free) names as keys
data="data_1",
)
# Plot at T0 = 0
i_t0 = int(np.round(orbital_phases.size / 2))
fig, axes = plt.subplots(nrows=2, sharex="all", figsize=(10, 6))
axes[0].plot(wavelengths[0] * 1e4, true_spectra[0, i_t0], ls="-", color="C2", label='"True" spectrum')
axes[0].plot(wavelengths[0] * 1e4, median_spectra[0, i_t0], ls="-", color="C0", label="Median spectrum")
axes[0].plot(wavelengths[0] * 1e4, best_fit_spectra[0, i_t0], ls="-", color="r", label="Best-fit spectrum")
axes[0].plot(wavelengths[0] * 1e4, prepared_data[0, i_t0], ls="--", color="k", label="Data")
fig.legend()
axes[1].plot(
wavelengths[0] * 1e4,
(true_spectra[0, i_t0] - prepared_data[0, i_t0]) / prepared_data_uncertainties[0, i_t0],
ls="-",
color="C2",
label='"True" spectrum',
)
axes[1].plot(
wavelengths[0] * 1e4,
(median_spectra[0, i_t0] - prepared_data[0, i_t0]) / prepared_data_uncertainties[0, i_t0],
ls="-",
color="C0",
label="Median spectrum",
)
axes[1].plot(
wavelengths[0] * 1e4,
(best_fit_spectra[0, i_t0] - prepared_data[0, i_t0]) / prepared_data_uncertainties[0, i_t0],
ls="-",
color="r",
label="Best-fit spectrum",
)
axes[0].set_title(rf"Comparison with best fit model ($\phi = {orbital_phases[i_t0]:.2f}$)")
axes[0].set_ylabel("Spectrum [A.U.]")
axes[1].set_xlabel("Wavelength [microns]")
axes[1].set_ylabel(r"Residuals ($\sigma$)")
Text(0, 0.5, 'Residuals ($\\sigma$)')
The residuals between the data and the spectrum with the true parameters are not 0. This is because our (simulated) data have tellurics and deformations, while our forward model have not. Since our preparing pipeline is imperfect, this creates some differences between the spectra.
Because we retrieved simulated noiseless data, the residuals are extremely small. The reduced \(\chi^2\) is close to 0. On noisy (real) data, the reduced \(\chi^2\) should be close to 1.
The best fit parameters, as well as the maximum likelihood and the best fit \(\chi^2\) can be obtained as follows:
[14]:
best_fit_parameters, max_likelihood, chi2 = retrieval.get_best_fit_parameters(return_max_likelihood=True)
print(
f"Best fit reduced chi2 against the prepared data: {chi2 / (prepared_data.size - len(retrieved_parameters)):.2e} (from Log(L) = {max_likelihood:.2f})" # noqa: E501
)
print("\nBest fit parameters (truth):")
for parameter_name, value in best_fit_parameters.items():
print(f" - '{parameter_name}': {value:.3f} ({true_parameters[parameter_name]:.3f})")
Best fit reduced chi2 against the prepared data: 7.55e-05 (from Log(L) = -0.28)
Best fit parameters (truth):
- 'temperature': 1185.812 (1209.000)
- 'CO-NatAbund': -6.540 (-2.000)
- 'H2O': -3.582 (-3.000)
- 'log10_opaque_cloud_top_pressure': -1.437 (-2.000)
- 'radial_velocity_semi_amplitude': 15219042.223 (15254766.005)
- 'rest_frame_velocity_shift': -507000.060 (-500000.000)
- 'mid_transit_time': -6.017 (0.000)
It is not unusual for the best fit parameters to be different from the truth. This is again caused by the imperfect preparing pipeline. Because the forward model with the true parameters is not exactly equal to the simulated data, there is room for the retrieval to find pseudo-improvement of the fit. The median retrieved parameters should be considered more reliable. In any case, any preparing pipeline should be tested in order to ensure that its imperfections are not biasing the retrieval.
More generally, the retrieval samples can be obtained with the get_samples_dict function.
[15]:
samples = retrieval.get_samples_dict()
fig, ax = plt.subplots(figsize=(3, 3))
ax.hist(samples["H2O"], density=True, histtype="step")
ax.set_xlabel(retrieved_parameters["H2O"]["figure_label"])
ax.set_ylabel("Probability density")
[15]:
Text(0, 0.5, 'Probability density')
